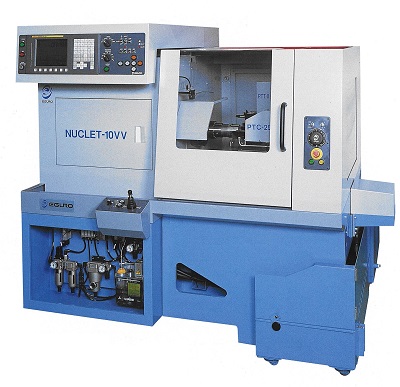

Worked on high precision and energy conservation is a high precision comb blade-shaped CNC lathe of the next generation.
Bet shape Z slide 60 ° vv Yamagata of the adopted, with a spindle motor Ministry Enesofuto (patent pending).
| 能力 | 横送り台上の振り | 200mm | |
| コレット | 形式・番号 | EDA-10 | |
| 口径 | 25.5mm | ||
| 主軸 | 回転変換数・回転速度 | 無段S4桁・100～5,000min-1 | |
| 切削台 | 移動量 | X 260mm | |
| Z 250mm | |||
| 早送り速度 | X 15m/min | ||
| Z 15m/min | |||
| 主電動機 | 2.2kw | ||
| 制御装置 | FANUC 0i-TD | ||
